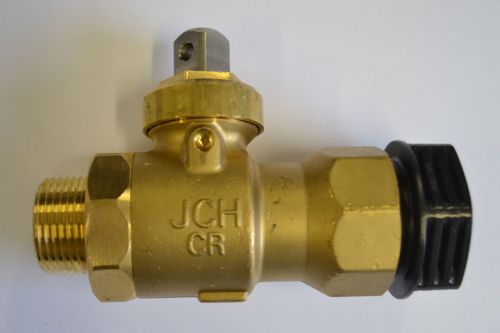

Type 745512

Ball valve with socket connector and compression connector for PEM piping
Type 745512 is similar to Type 745511 - it has full passage and can be used for tapping into pressurised systems. The only difference is that this valve has been specially designed for PEM piping, which is connected by means of the approved PRK compression connector attached to one side of the valve. The compression connector can be removed if necessary, allowing the underlying standard pipe thread to be used instead.

Tapping and simple installation on PEM piping
As previously mentioned, this valve type allows pressurised systems to be tapped into. Type 745512 is also extremely versatile with respect to choice of connector as it is suitable for pipe thread and compression connectors and also allows connection to PEM piping systems. The compression connector system ensures a reliable, tight connection to the piping, which can be connected and disconnected repeatedly without any adverse effect on tightness. The ball valve is extremely quick and easy to fit. Simply insert the pipe end to the built-in stop and then tighten the compression connector. That's all there is to it!

JCH Ball Type 745512 comes in 2 types:

Type 745512 fits with traditional JCH Extension spindle

Type 745512 special top fits with AVK Extension spindle and street cover

#

Download data sheet
JCH- top
AVK-top
